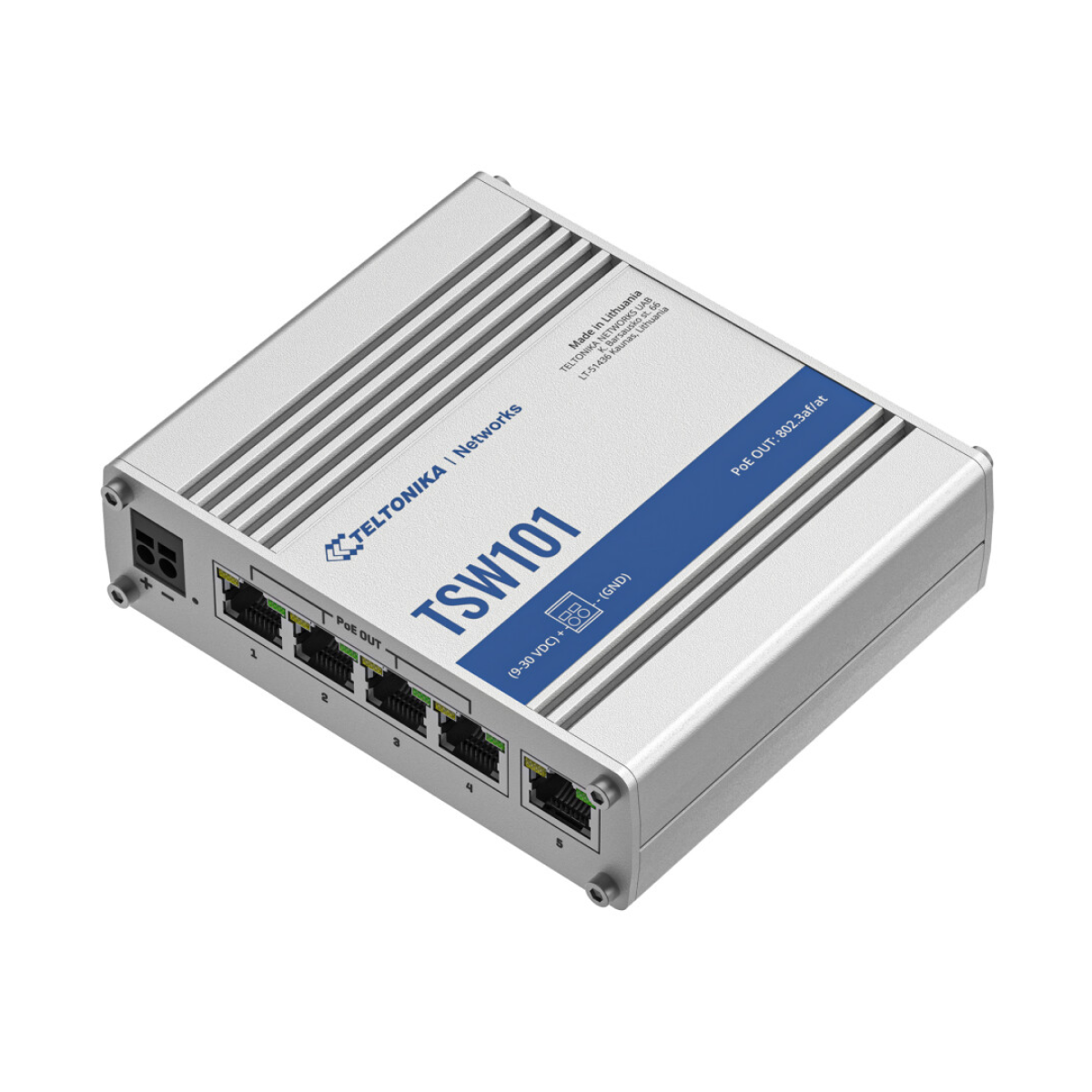

Teltonika TSW101 Automotive Unmanaged PoE+ Switch 5x Gigabit Ethernet
Network & Interfaces
| Total Ethernet Ports | 5 x RJ45 (10/100/1000 Mbps) |
|---|---|
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| MDI/MDIX Crossover | Supports Auto-MDI/MDIX |
| Bandwidth (Non-blocking) | 10 Gbps |
| MAC Address Table | 2K entries |
Power over Ethernet (PoE)
| PoE-Out Ports | 4 x PoE+ (Ports 1 to 4) |
|---|---|
| PoE Standards | 802.3af and 802.3at (Alternative A) |
| Max Power per Port | 30 Watts |
| Total PoE Power Budget | 60 Watts |
| Maximum Cable Range | 100 meters |
Power Dynamics
| Power Input Connector | 2-pin industrial DC power socket |
|---|---|
| Input Voltage Range | 9 - 30 V DC (Compatible with 12V/24V car batteries) |
| Power Consumption | Idle: 0.64W / Max: 2.31W (Without PoE consumption) |
Physical & Environment
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
|---|---|
| Net Chassis Weight | 354 g |
| Casing Material | Anodized Aluminum |
| Ingress Protection | IP30 Rating |
| Operating Temperature | -40°C to +75°C |
Identifiers
| MPN | TSW101 |
|---|---|
| GTIN / EAN / UPC | 4779051840113 |
