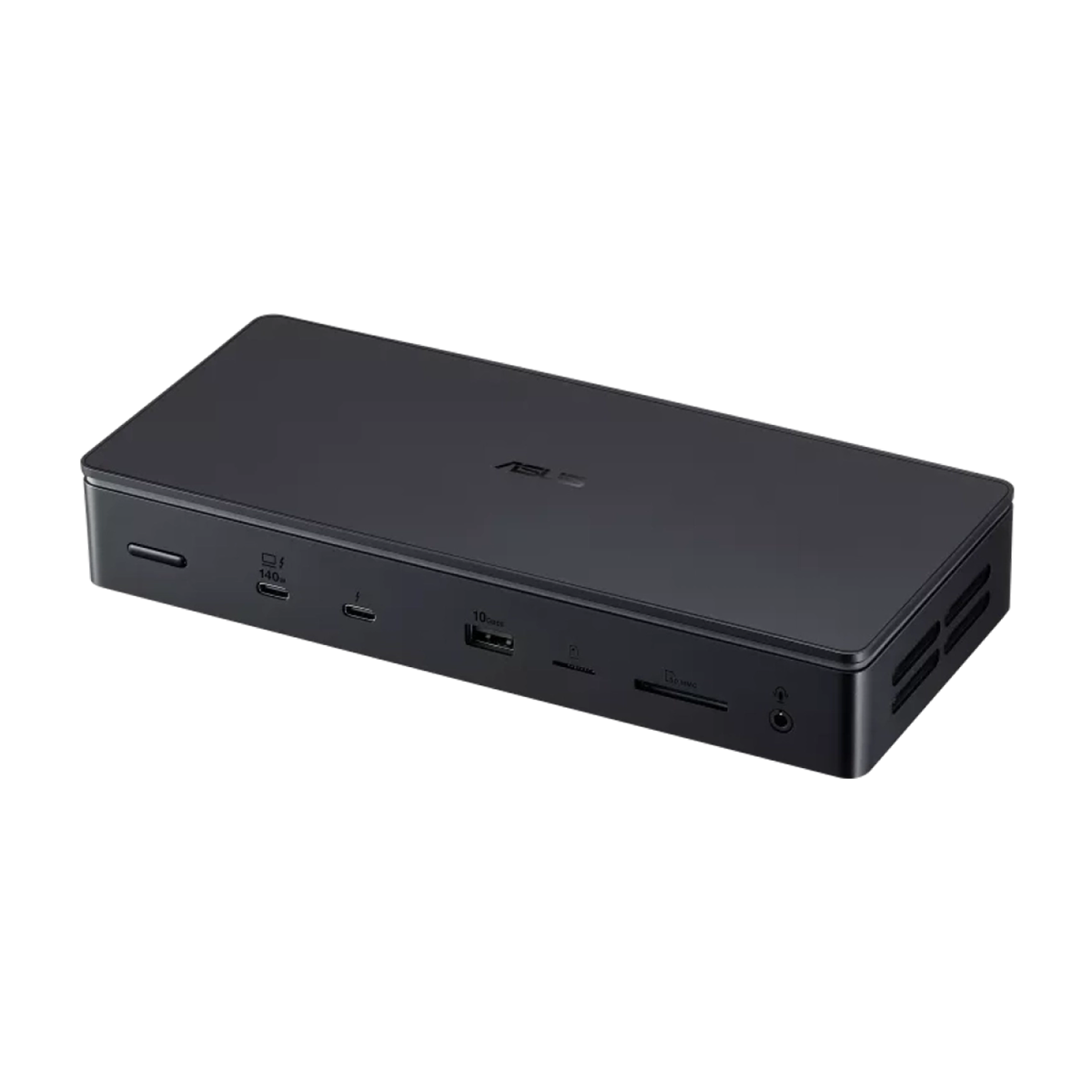

ASUS Master Thunderbolt 5 Dock DC510 Black
ASUS Master Thunderbolt 5 Dock DC510 13-in-1 Black
| Brand | ASUS |
|---|---|
| Product Series | Master |
| Model | DC510 TBT5 Dock |
| Product Type | Thunderbolt 5 Docking Station |
| Colour | Black |
| Connectivity | Wired |
| Number of Functions | 13-in-1 |
| Host Interface | Thunderbolt 5 |
| Upstream Connection | 1 x Thunderbolt 5 |
| Thunderbolt 5 Ports | 3 total: 1 upstream and 2 downstream, plus one additional downstream port listed in ASUS product overview |
| Maximum Data Transfer Rate | Up to 80 Gbps |
| Display Bandwidth | Up to 120 Gbps with Bandwidth Boost |
| Maximum Number of Displays | Up to 3 external displays |
| Maximum Display Resolution | Up to 8K, depending on host and display configuration |
| 4K Display Support | Up to 3840 x 2160 at 144 Hz per supported Thunderbolt output |
| Video Output | Display output through Thunderbolt 5 |
| HDMI Ports | None |
| USB-A Ports | 4 |
| USB-A 10 Gbps | 3 ports, USB 3.2 Gen 2 |
| USB-A 5 Gbps | 1 port |
| USB-C Ports | Thunderbolt 5 ports |
| USB Power Delivery | Up to 140 W |
| USB Power Delivery Standard | USB PD 3.1 |
| Ethernet | 1 x RJ-45 2.5 Gigabit Ethernet |
| Ethernet Speed | 10/100/1000/2500 Mbps |
| SD Card Reader | SD 4.0 UHS-II |
| MicroSD Card Reader | UHS-II |
| Audio Connector | 1 x 3.5 mm audio combo jack |
| Storage Expansion | 1 x M.2 2280 NVMe SSD slot |
| SSD Interface | PCIe 4.0 x4 |
| SSD Installation | Toolless access under magnetic top cover |
| Security | Kensington lock slot |
| Power Button | Yes, with indicator LED |
| Lighting | White ambient LED lighting with adjustable brightness and breathing mode |
| Compatible Operating Systems | Windows 10 or later and macOS 12.3 or later |
| Compatible Devices | Laptops supporting Thunderbolt 5, Thunderbolt 4 or compatible USB4 connectivity; feature support varies by host |
| Power Adapter | 180 W DC adapter |
| Power Adapter Output | 20 V / 9 A |
| Power Input | 7.4 mm DC jack |
| Cable Length | 1 m |
| Housing Material | Aluminium and plastic |
| Width | 9.67 cm |
| Length | 22 cm |
| Height | 3.81 cm |
| Weight | 765 g |
| Included Accessories | ASUS Master Thunderbolt 5 Dock DC510, 180 W power adapter, power cord, user manual and warranty card |
| Packaging Weight | 0.86 kg |
| Packaging Dimensions | 7.6 × 3.9 × 9.6 cm (H × W × L) |
Identifiers
| MPN | 90XB09NN-BDS010 |
|---|---|
| GTIN / EAN / UPC | 4711387852484 |
