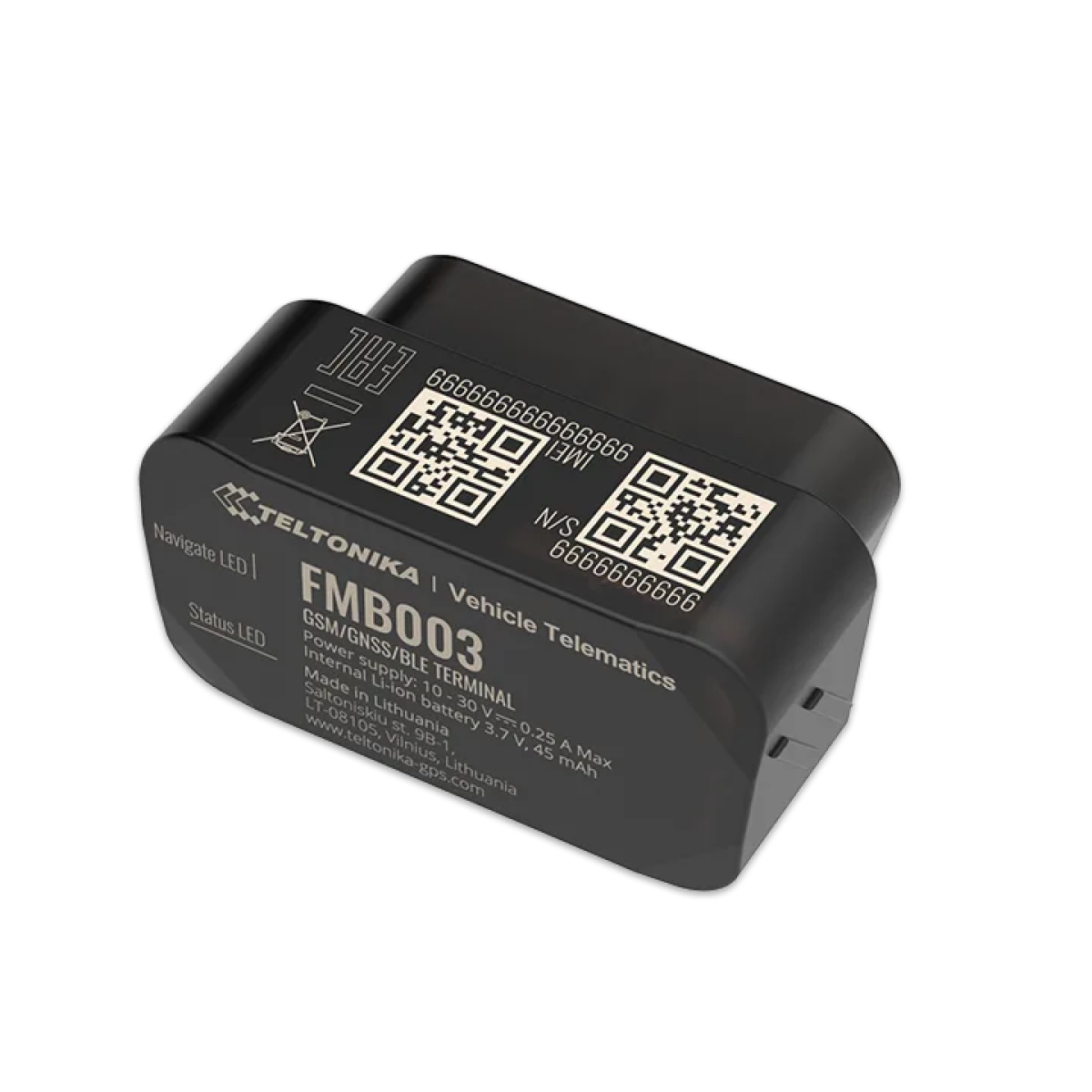

Teltonika FMB003 GPS Tracker
Connectivity & Networks
| Cellular Technology | 2G GSM / GPRS (Quad-band 850 / 900 / 1800 / 1900 MHz) |
|---|---|
| GPRS Data Carrier | GPRS Multi-slot Class 12 (Up to 240 kbps) |
| GNSS Positioning | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Tracking Sensitivity | -165 dBM |
| Bluetooth Profile | Bluetooth 4.0 + LE (Low Energy) |
Power & Interface
| Connection Interface | Standard OBDII Socket |
|---|---|
| Input Voltage Range | 12 - 30 V DC with overvoltage protection |
| Internal Backup Battery | 3.7 V 45 mAh Li-Ion battery |
| Configuration Port | 1x Micro-USB 2.0 |
| Status Indicators | 2x LED status lights |
OBD Data Processing
| Supported Bus Lines | HS CAN, MS CAN, SW CAN, K-line |
|---|---|
| Data Telemetry | OEM Fuel level, real odometer, and up to 32 vehicle onboard parameters |
| Supported Protocols | ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, ISO 14229 (UDS), J2819 (VW TP2.0) |
Hardware & Smart Scenarios
| Integrated Sensors | 3-axis Accelerometer |
|---|---|
| Internal Memory | 128MB Flash (Up to 422,400 records) |
| SIM Slot Type | Nano-SIM |
| Advanced Scenarios | Green Driving, Over Speeding, Jamming, Unplug, Towing, Crash Detection, Auto Geofence, Manual Geofence, Trip |
| Sleep Modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
Physical Properties
| Dimensions (LxWxH) | 52.6 x 29.1 x 26 mm |
|---|---|
| Net Weight | 30 g |
| Ingress Protection | IP41 Rating |
| Operating Temperature | -40°C to +85°C (without battery) |
Identifiers
| MPN | FMB003 |
|---|---|
| GTIN / EAN / UPC | 4779027312675 |
