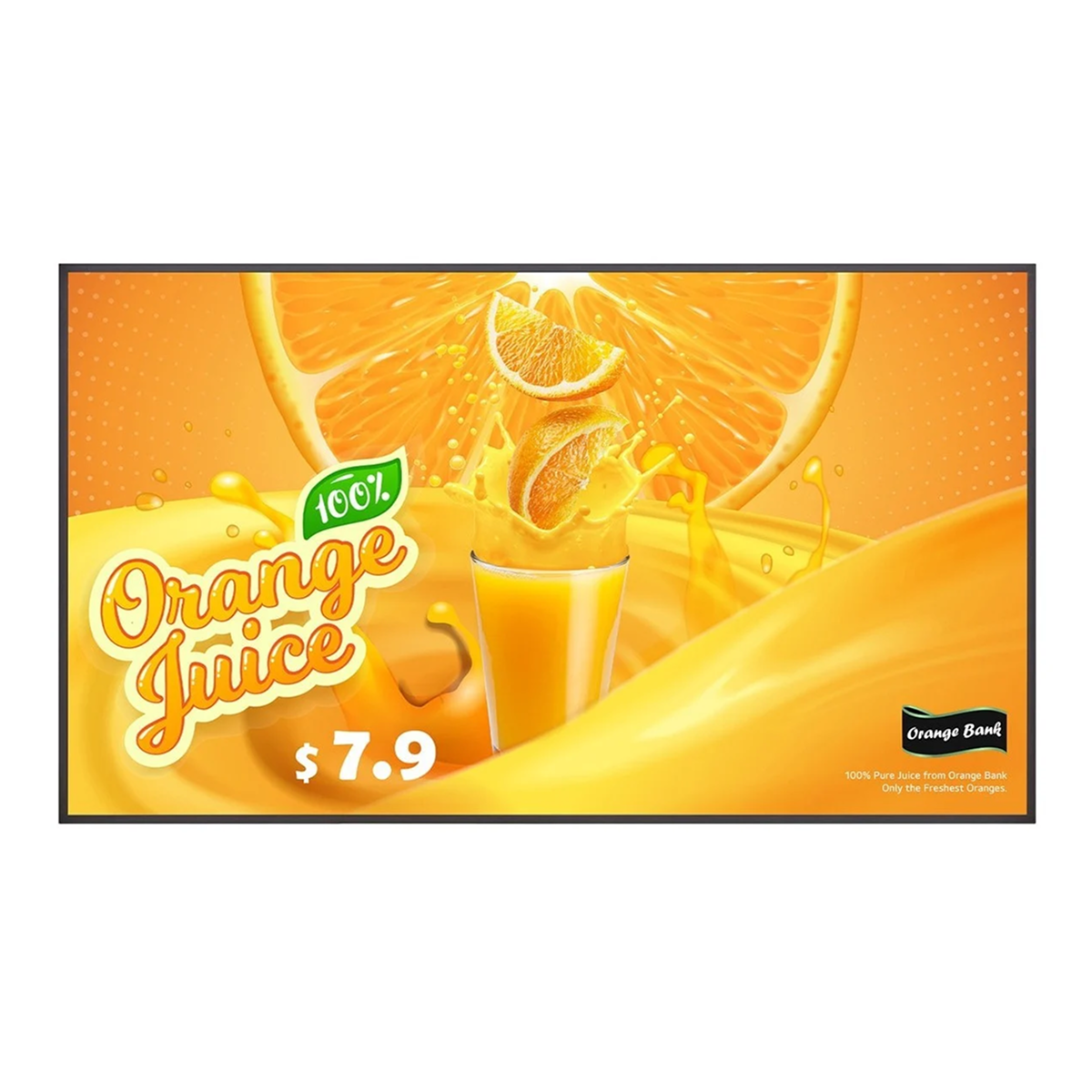

LG Monitor 43UH5Q-E 43 " Wi-Fi Black
General
| Brand | LG |
|---|---|
| Model | 43UH5Q-E |
| Product Name | LG 43UH5Q-E 43-inch UHD Signage Display |
| Product Type | Commercial Digital Signage Display |
| Color | Black |
| Screen Size | 43 inches |
| Primary Use | Digital signage, retail displays, business information, corporate communications, menus and advertising |
| Display Orientation | Landscape and portrait |
| Operating Hours | Designed for 24 hours per day, 7 days per week operation |
| Smart Platform | LG webOS Signage |
Body
| Dimensions | 97.17 x 56.10 x 2.97 cm (W x H x D), without stand |
|---|---|
| Weight | 9.4 kg (display head) |
| Packed Weight | 11.3 kg |
| Build | Slim commercial display design |
| Bezel Color | Black |
| Bezel Width | 11.4 mm, even bezel |
| Mounting Standard | VESA 200 x 200 mm |
| Stand | Stand availability and included accessories depend on the sales package |
| Carton Dimensions | 105.5 x 66.0 x 14.0 cm |
Display
| Panel Type | ADS LCD with edge backlight |
|---|---|
| Screen Size | 43 inches (109.22 cm diagonal) |
| Resolution | 3840 x 2160 pixels (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Brightness | 500 cd/m² (nits), typical |
| Contrast Ratio | 1200:1, typical |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Color Gamut | BT.709 95% |
| Color Depth | 10-bit processing (8-bit + FRC); up to 1.07 billion colors |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 8 ms (Gray to Gray) |
| Surface Treatment | Approximately 25% haze |
| HDR | HDR support not confirmed in the cited specification |
| Touchscreen | No |
| Backlight Life | Minimum 50,000 hours (manufacturer specification) |
Platform
| Operating System | LG webOS 8.0 |
|---|---|
| Processor | Processor model not specified |
| Graphics Processor | Not separately specified |
| Internal Memory | 16 GB eMMC |
| Smart Signage Platform | Built-in webOS platform for digital signage content and applications |
| Content Playback | Supports signage content playback through compatible built-in software and external sources |
| Web Content Playback | Play via URL feature supported |
| Digital Signage Management | Compatible with supported LG SuperSign solutions |
Memory
| Internal Storage | 16 GB eMMC |
|---|---|
| RAM | Exact RAM capacity not specified |
| Memory Card Slot | Not specified |
| USB Storage Support | USB 2.0 Type-A connections for compatible storage devices and peripherals |
Audio
| Built-in Speakers | Yes, 2 speakers |
|---|---|
| Speaker Output | 10 W per speaker, 20 W total |
| Audio Output | Audio output connection provided |
| Audio Input | HDMI and DisplayPort can carry digital audio |
| 3.5mm Audio Jack | Not confirmed in the cited specification |
| Microphone | No built-in microphone specified |
Connectivity
| HDMI | 3 x HDMI inputs, supporting up to 3840 x 2160 at 60 Hz |
|---|---|
| DisplayPort | 1 x DisplayPort input, supporting up to 3840 x 2160 at 60 Hz |
| USB | 2 x USB 2.0 Type-A |
| Ethernet | 1 x RJ45 LAN input |
| RS-232C Input | 1 x 4-pin phone-jack connection |
| RS-232C Output | 1 x 4-pin phone-jack connection |
| Infrared Input | 1 x IR input |
| Audio Output | 1 x audio output |
| HDCP | HDMI: HDCP 2.2 / 1.4; DisplayPort: HDCP 2.2 / 1.3 |
| Wi-Fi | Built-in Wi-Fi not confirmed in the official specification sheet; verify the regional model and any optional wireless adapter |
| Bluetooth | Not specified in the cited official specification |
| Wireless Screen Sharing | Availability depends on supported software, compatible devices and any required accessories |
Features
| Picture by Picture | PBP supported, up to 4 inputs |
|---|---|
| Video Tag | Supported |
| Tile Mode | Supported, up to 15 x 15 configuration |
| Portrait Installation | Supported |
| Landscape Installation | Supported |
| Remote Management | Compatible with supported LG digital signage management solutions |
| Security | LG Shield multi-layer security architecture |
| Network Control | LAN and RS-232C control interfaces |
| Crestron Compatibility | Supported |
| Cisco Compatibility | Supported |
| Beacon | Supported |
| Automatic Failover | Supported |
| Touch Function | Not supported as a built-in touchscreen |
| Camera | No built-in camera specified |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
|---|---|
| Power Type | Built-in power supply |
| Maximum Power Consumption | 127 W |
| Smart Energy Saving | Approximately 58 W at the specified 70% energy-saving setting |
| Power Consumption in DPM | 0.5 W |
| Power Consumption When Off | 0.5 W |
| Heat Generation | 433 BTU/hour maximum |
| Battery | Not applicable; mains-powered display |
| Power over Ethernet | Not supported |
Environmental Conditions
| Operating Temperature | 0°C to 40°C |
|---|---|
| Operating Humidity | 10% to 80% |
| Intended Operating Schedule | 24 hours per day, 7 days per week |
| Conformal Coating | Partial conformal coating on the power board |
| Water Resistance | No verified water-resistance rating |
| Dust Resistance | No verified IP rating |
Our Tests
| Resolution | Manufacturer-rated 3840 x 2160 pixels |
|---|---|
| Brightness | Manufacturer-rated 500 nits typical |
| Refresh Rate | Manufacturer-rated 60 Hz |
| Response Time | Manufacturer-rated 8 ms Gray to Gray |
| Audio | Manufacturer-rated 2 x 10 W built-in speakers |
| Independent Performance Tests | Independent laboratory test results not available |
Eu Label
| Energy Efficiency Class | No verified EU energy label class found |
|---|---|
| Power Consumption | 127 W maximum; 58 W at specified energy-saving setting |
| Repairability | No verified repairability class found |
| Free Fall | Not specified |
| Energy Label Registration | Not confirmed |
Identifiers
| MPN | 43UH5Q-E.AEU |
|---|---|
| GTIN / EAN / UPC | 8806096540725 |
