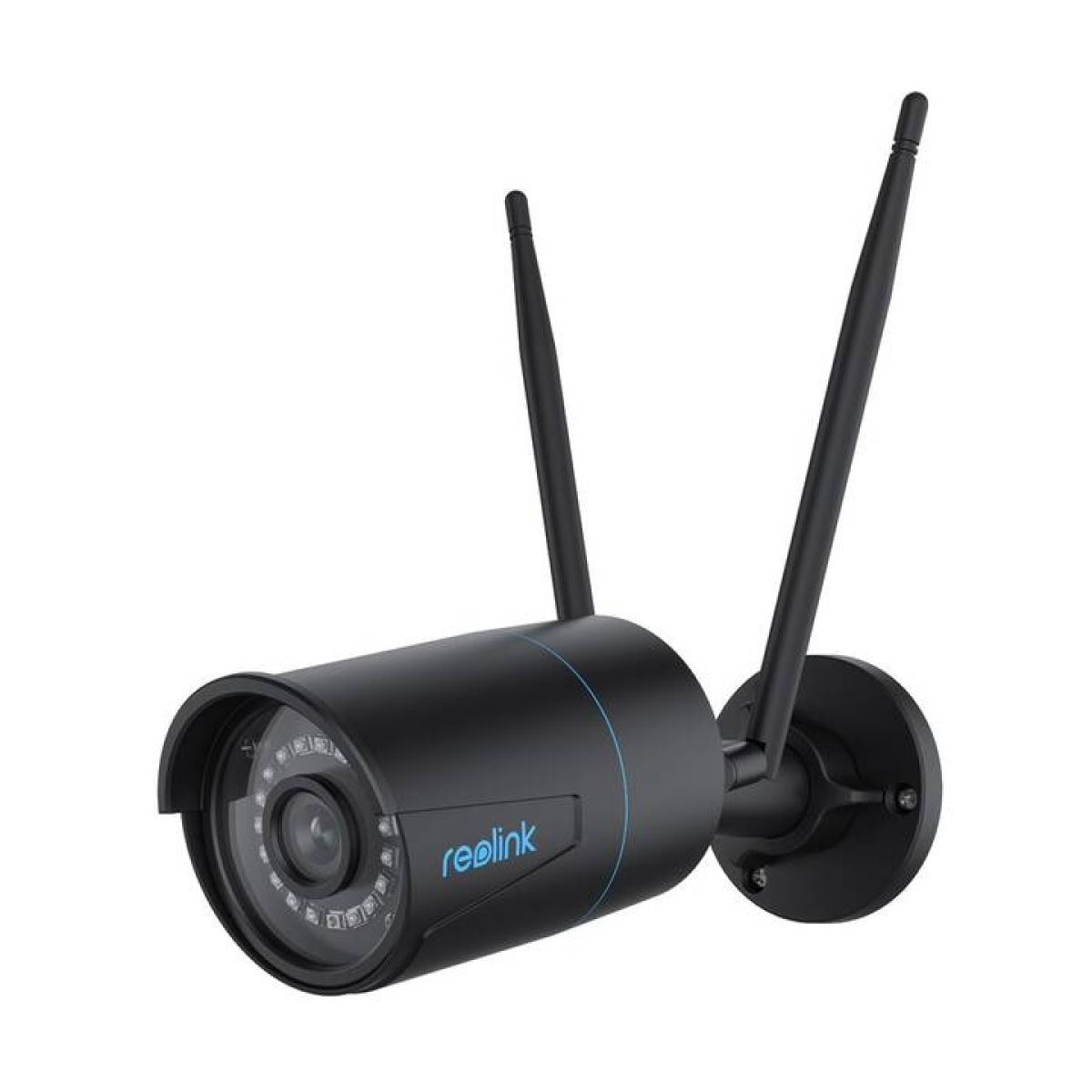

Reolink W320 Smart Dual-Band Wi-Fi Outdoor Security Camera
Video & Audio
| Image Sensor | 1/2.7" CMOS Sensor |
|---|---|
| Video Resolution | 2560 x 1920 (5.0 Megapixels) at 20 frames/sec |
| Lens Specifications | f=4.0 mm fixed, F=2.0 with IR-cut filter |
| Field of View | Horizontal: 80°, Vertical: 48° |
| Video Compression Format | H.264 |
| Audio Hardware | Built-in microphone and speaker (Two-way audio) |
Connectivity & Network
| Wi-Fi Standard | IEEE 802.11a/b/g/n |
|---|---|
| Operating Frequency | 2.4 GHz / 5 GHz Dual-Band |
| Wireless Security | WPA-PSK / WPA2-PSK |
| Wired Interface | 1x 10M/100Mbps RJ45 Ethernet port |
| Network Protocols | HTTPS, SSL, TCP/IP, UDP, IPv4, RTSP, RTMP, ONVIF, SMTP, DHCP, DNS, FTP, P2P |
Smart Functions & Storage
| Intelligent Detection | Person detection, vehicle detection, animal/pet detection, motion detection |
|---|---|
| Recording Modes | Motion-triggered (default), scheduled, 24/7 continuous recording |
| Local Storage Slot | MicroSD card slot (Supports up to 256 GB) |
| Network Storage Options | Compatible with Reolink NVR and FTP servers |
| Smart Home Integration | Google Assistant |
Hardware & Environment
| Night Vision Range | Up to 30 meters (100 ft) via 18 IR LEDs (850 nm) |
|---|---|
| Power Input Requirements | DC 12.0 V ⎓ 1 A, power consumption less than 12 W |
| Weatherproof Rating | IP67 certified dust and waterproof |
| Operating Conditions | Temperature: -10°C to +55°C; Humidity: 10% to 90% |
| Physical Dimensions | Φ67 x 186 mm |
| Net Product Weight | 415 g |
Identifiers
| MPN | WC510WAB2K02B |
|---|---|
| GTIN / EAN / UPC | 6975253984343 |
