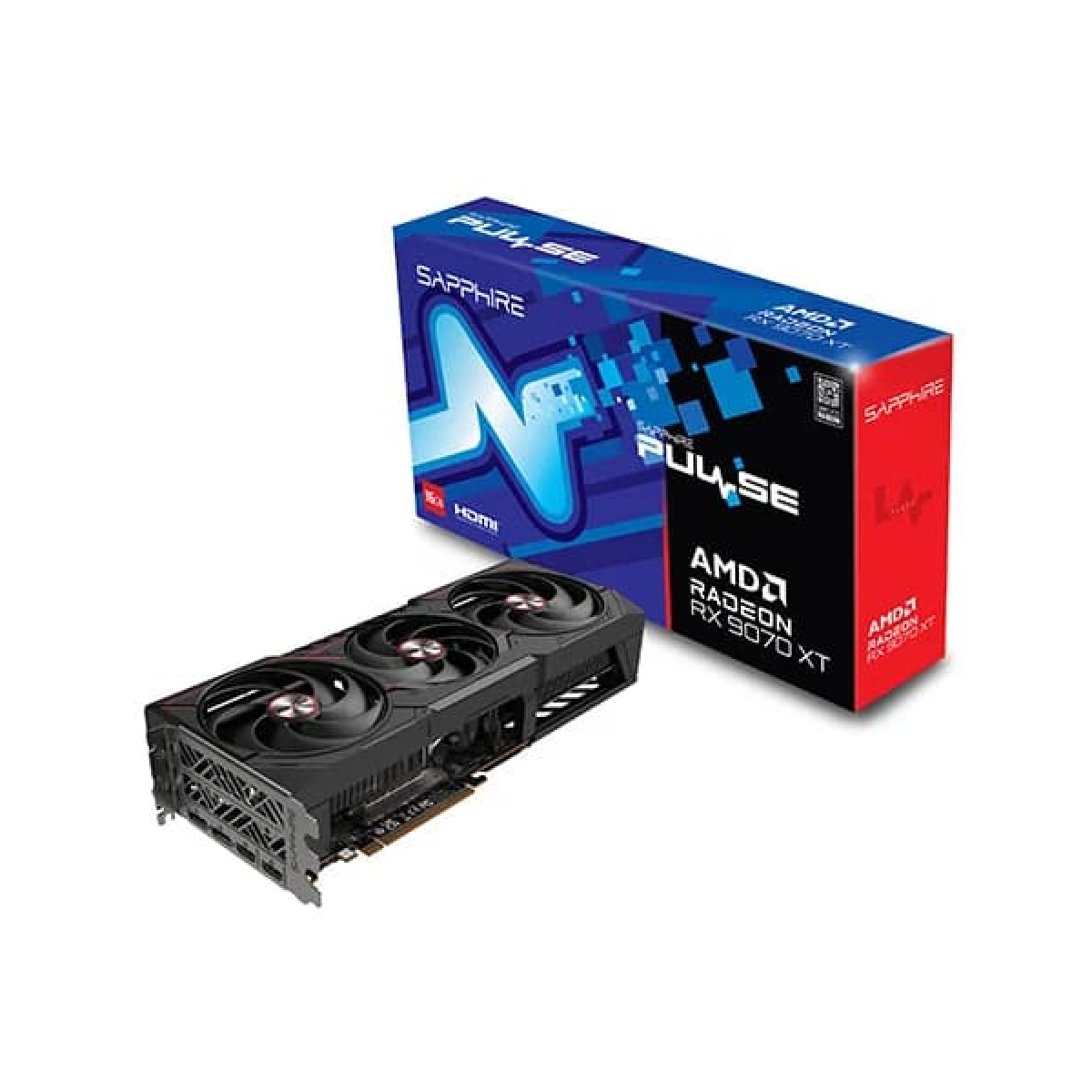

Sapphire PULSE Radeon RX 9070 XT AMD 16GB GDDR6
| Product Name | Sapphire PULSE Radeon RX 9070 XT 16GB |
|---|---|
| Architecture | AMD RDNA 4 (Navi 48 XTX) |
| Interface | PCIe 5.0 x16 |
| Warranty | 3 Years |
| Compute Units | 64 |
|---|---|
| Stream Processors | 4096 |
| Game Clock | Approximately 2070 MHz |
| Boost Clock | Up to 2970 MHz |
| Memory Capacity | 16 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Interface | 256-Bit |
| Memory Speed | 20 Gbps |
| Memory Bandwidth | Approximately 640 GB/s |
| Video Outputs | 2x HDMI 2.1b, 2x DisplayPort 2.1a |
|---|
| Typical Board Power | Approximately 304 W |
|---|---|
| Power Connectors | 2x 8-Pin PCIe |
| Cooling System | Tri-X Cooling |
|---|---|
| Fan Design | AeroCurve Dual-Ball Bearing Fans |
| Thermal Design | Heatpipes, Honeywell PTM7950 Thermal Interface Material and High-TG Copper PCB |
| Construction | FrameDefense Reinforced Design |
| Gaming Features | AMD HYPR-RX, Anti-Lag 2 and FSR 4.0 Support |
| Card Dimensions (LxWxH) | Approximately 320 x 120.25 x 61.6 mm |
|---|---|
| Slot Width | Triple-Slot |
| Card Weight | Approximately 1 kg |
| Shipping Weight | Approximately 1.85 kg |
|---|---|
| Package Weight | Approximately 16 kg |
| Package Dimensions (LxWxH) | Approximately 430 x 390 x 460 mm |
| MPN | 11348-03-20G |
|---|---|
| GTIN / EAN / UPC | 4895106295919 |
