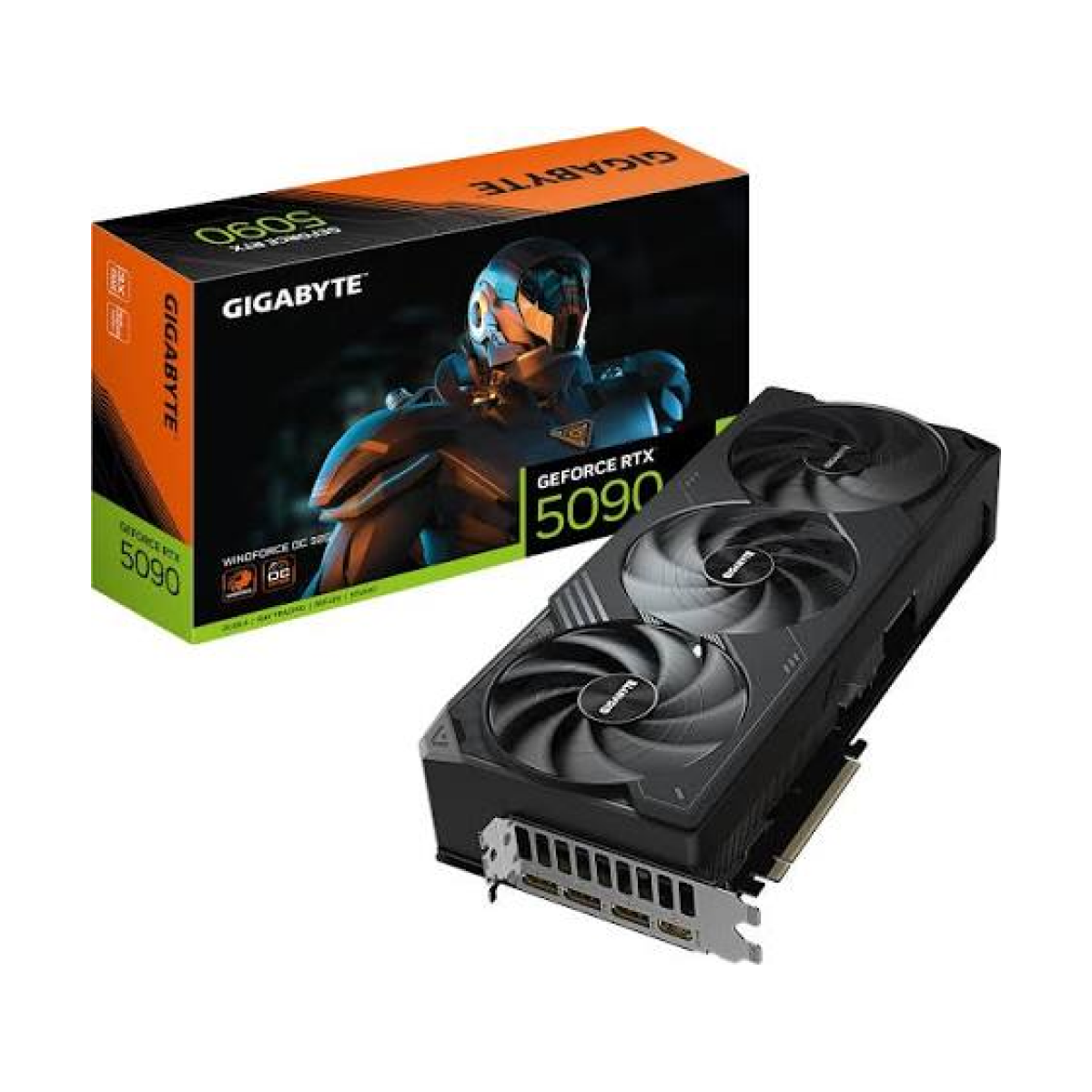

Gigabyte GeForce RTX 5090 WINDFORCE OC 32GB GDDR7
| Brand | Gigabyte |
|---|---|
| Model | GeForce RTX 5090 WINDFORCE OC 32G |
| Part Number | GV-N5090WF3OC-32GD |
| Form Factor | 3.2-Slot Triple-Fan Desktop Graphics Card |
| Dimensions | 342 x 150 x 65 mm |
| Reinforcement | Reinforced Metal Backplate & Anti-Sag VGA Holder Included |
| Graphics Processor | NVIDIA GeForce RTX 5090 (Blackwell GB202) |
|---|---|
| CUDA Cores | 21,760 Cores |
| Boost Clock Speed | 2467 MHz (Reference Card: 2407 MHz) |
| Video Memory | 32 GB GDDR7 (512-bit Interface @ 28 Gbps) |
| Memory Bandwidth | 1,792 GB/s |
| AI Acceleration | 5th Gen Tensor Cores & DLSS 4 Support |
| Total Graphics Power (TGP) | 575 W |
| Bus Interface | PCI Express 5.0 x16 |
|---|---|
| Display Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
| Power Input | 1x 16-Pin 12V-2x6 Power Cable Interface |
| Cooling Architecture | Vapor Chamber, Composite Heatpipes, Server-Grade Gel & 3x Hawk Fans |
| Dual BIOS | Hardware Switch for Performance / Silent Operation Modes |
| Software Support | GIGABYTE Control Center (GCC) & NVIDIA Studio Drivers |
| MPN | GV-N5090WF3OC-32GD |
|---|---|
| GTIN / EAN / UPC | 4719331355838 |
