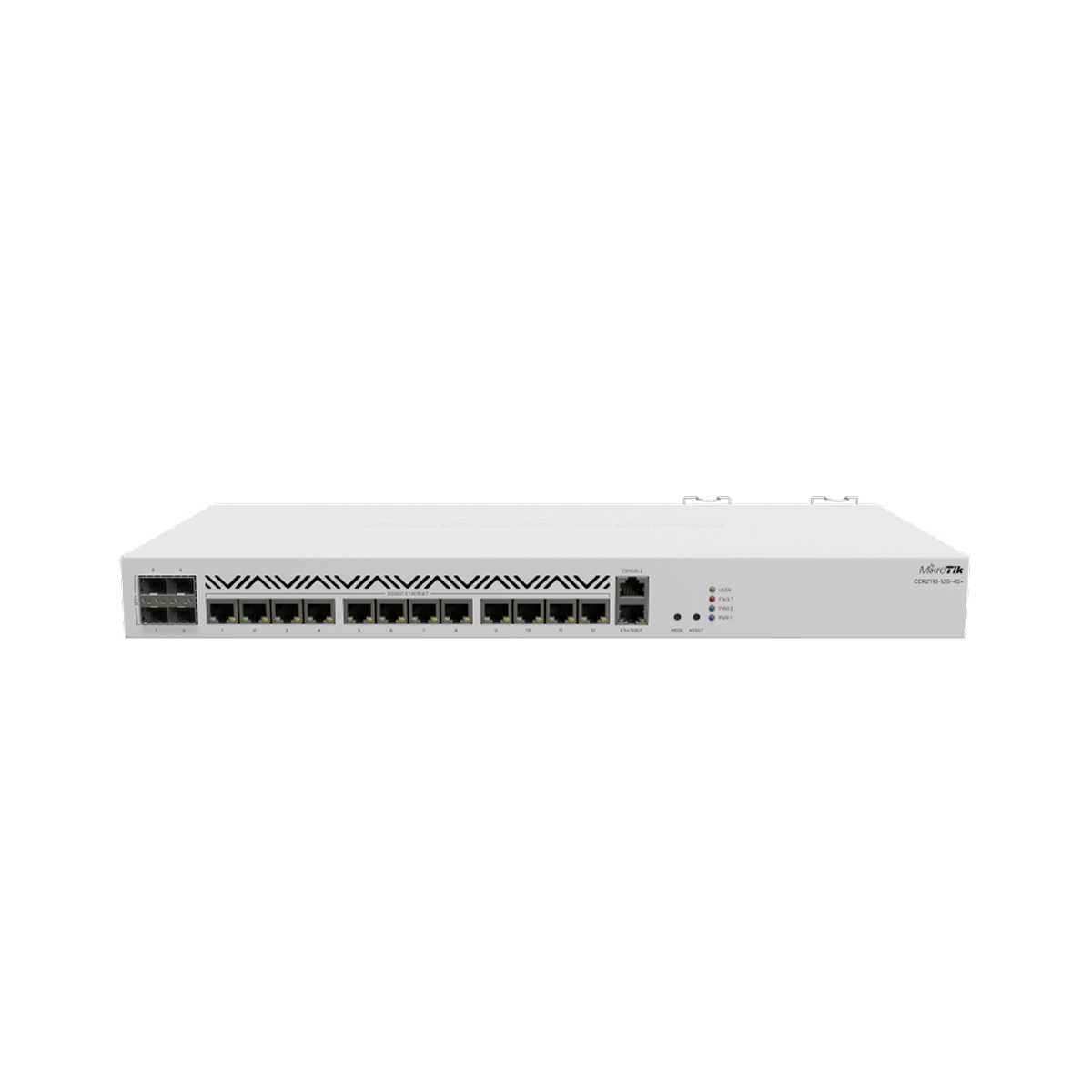

MikroTik CCR2116-12G-4S+ 12-Port Gigabit Router with 4x SFP+
MikroTik CCR2116-12G-4S+ Cloud Core Router 13-Port Gigabit Ethernet 4-Port 10G SFP+
| Product Information | |
|---|---|
| Brand | MikroTik |
| Product Type | Cloud Core Router |
| Product Series | CCR2116 |
| Model | CCR2116-12G-4S+ |
| MPN | CCR2116-12G-4S+ |
| EAN | 4752224007919 |
| Device Type | Enterprise and ISP-grade wired router |
| Rack Format | 1U rackmount |
| Architecture | ARM 64-bit |
| Processor | |
| Processor Manufacturer | Amazon Annapurna Labs |
| Processor Model | AL73400 |
| Processor Cores | 16 |
| Processor Threads | 16 |
| Processor Frequency | 2 GHz |
| Switch Chip | Marvell 98DX3255 |
| Memory | |
| Installed RAM | 16 GB |
| RAM Type | DDR4 |
| Internal Storage | 128 MB NAND |
| Storage Expansion | 1 x M.2 PCIe x4 slot |
| Compatible M.2 Drive | M.2 2280 M-key NVMe SSD |
| Network Interfaces | |
| Gigabit Ethernet Ports | 13 x 10/100/1000 Mbps RJ-45 |
| 10G SFP+ Ports | 4 |
| Fiber Connectivity | 10 Gigabit SFP+ |
| USB Ports | 1 x USB 3.0 Type-A |
| Serial Console | 1 x RJ-45 serial console port |
| Wireless Connectivity | No built-in Wi-Fi |
| Networking Features | |
| Layer 3 Hardware Offloading | Yes |
| IPsec Hardware Acceleration | Yes |
| Routing Features | Advanced routing, BGP, firewall, QoS and VPN |
| Operating System | MikroTik RouterOS v7 |
| RouterOS License Level | Level 6 |
| Software Updates | RouterOS software updates supported by MikroTik |
| Power Supply | |
| Power Supply Configuration | Dual redundant AC power supplies |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 47–63 Hz |
| Maximum Power Consumption | 83 W |
| Power Consumption Without Attachments | 60 W |
| Cooling | 4 fans |
| Monitoring and Controls | |
| CPU Temperature Monitoring | Yes |
| PCB Temperature Monitoring | Yes |
| Voltage Monitoring | Yes |
| Mode Button | Yes |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C |
| MTBF | 200,000 hours at 25°C |
| Certifications | CE, FCC, IC |
| Physical Characteristics | |
| Width | 44.3 cm |
| Depth | 19.9 cm |
| Height | 4.4 cm |
| Weight | 2.8 kg |
| In the Box | |
| Included Accessories | Router, 2 power cords, rackmount brackets and fastening kit |
| Packaging | |
| Packaging Weight | 2.833 kg |
| Packaging Dimensions | 6.8 × 27.7 × 48.8 cm (H × W × L) |
Identifiers
| MPN | CCR2116-12G-4S+ |
|---|---|
| GTIN / EAN / UPC | 4752224007919 |
