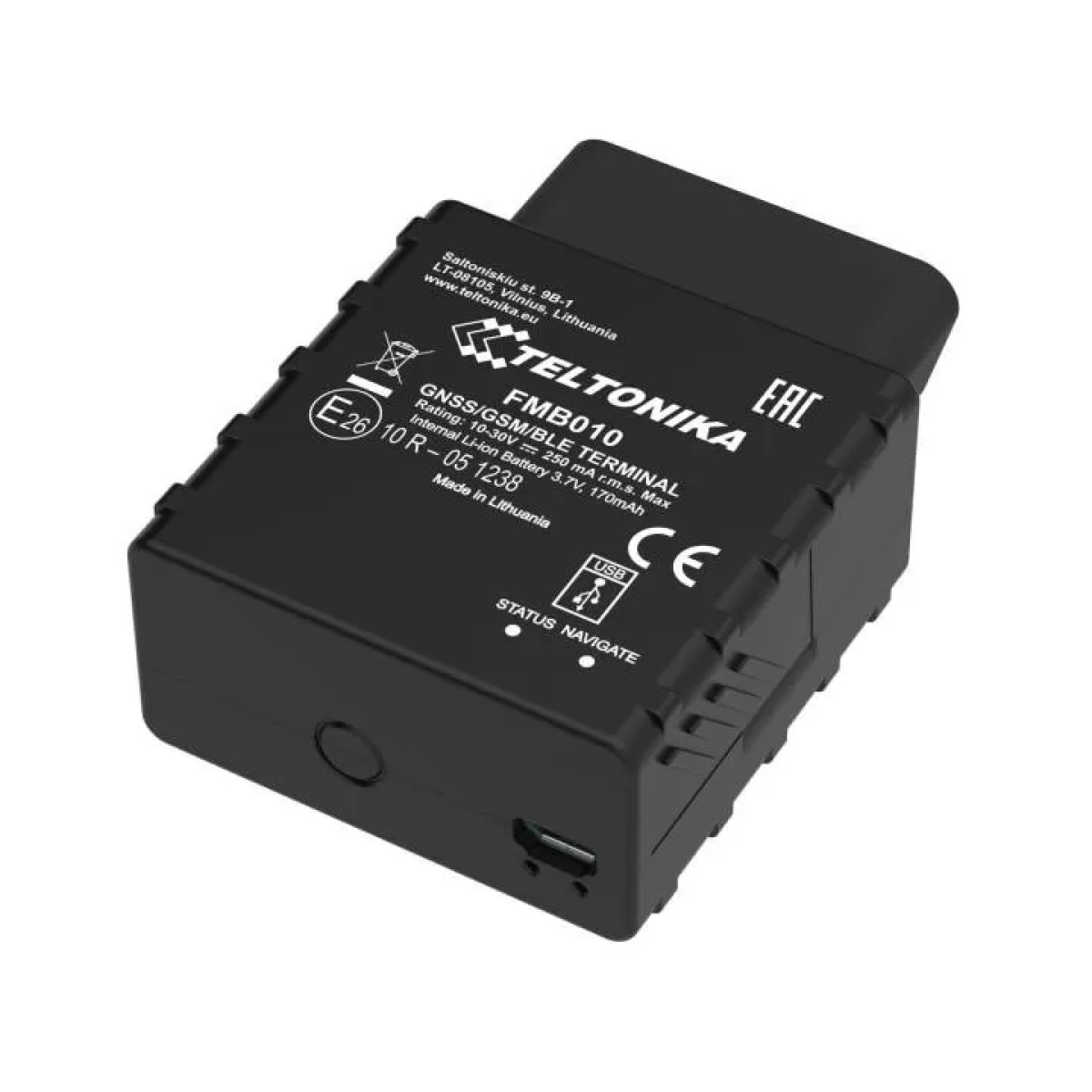

Teltonika FMB010 GPS Tracker
Connectivity & Networks
| Cellular Technology | 2G GSM / GPRS (Quad-band 850 / 900 / 1800 / 1900 MHz) |
|---|---|
| GPRS Data Carrier | GPRS Multi-slot Class 12 (Up to 240 kbps) |
| GNSS Positioning | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Tracking Sensitivity | -165 dBM |
| Bluetooth Profile | Bluetooth 3.0 compliant |
Power & Interface
| Connection Interface | Standard OBDII Socket |
|---|---|
| Input Voltage Range | 10 - 30 V DC with overvoltage protection |
| Internal Backup Battery | 170 mAh Li-Ion 3.7V (0.63 Wh) |
| Configuration Port | Micro-USB 2.0 |
| Status Indicators | 2x LED status lights |
Hardware & Smart Scenarios
| Integrated Sensors | 3-axis Accelerometer |
|---|---|
| Internal Memory | 128MB Flash (Up to 422,400 records) |
| SIM Slot Type | Micro-SIM |
| Advanced Scenarios | Green Driving, Over Speeding, Jamming, Unplug, Towing, Crash Detection, Auto Geofence, Trip Generation |
Physical Properties
| Dimensions (LxWxH) | 50.7 x 49.6 x 25 mm |
|---|---|
| Net Weight | 63 g |
| Ingress Protection | IP41 Rating |
| Operating Temperature | -40°C to +85°C (without battery) |
Identifiers
| MPN | FMB0101VIP01 |
|---|---|
| GTIN / EAN / UPC | 4779027311722 |
