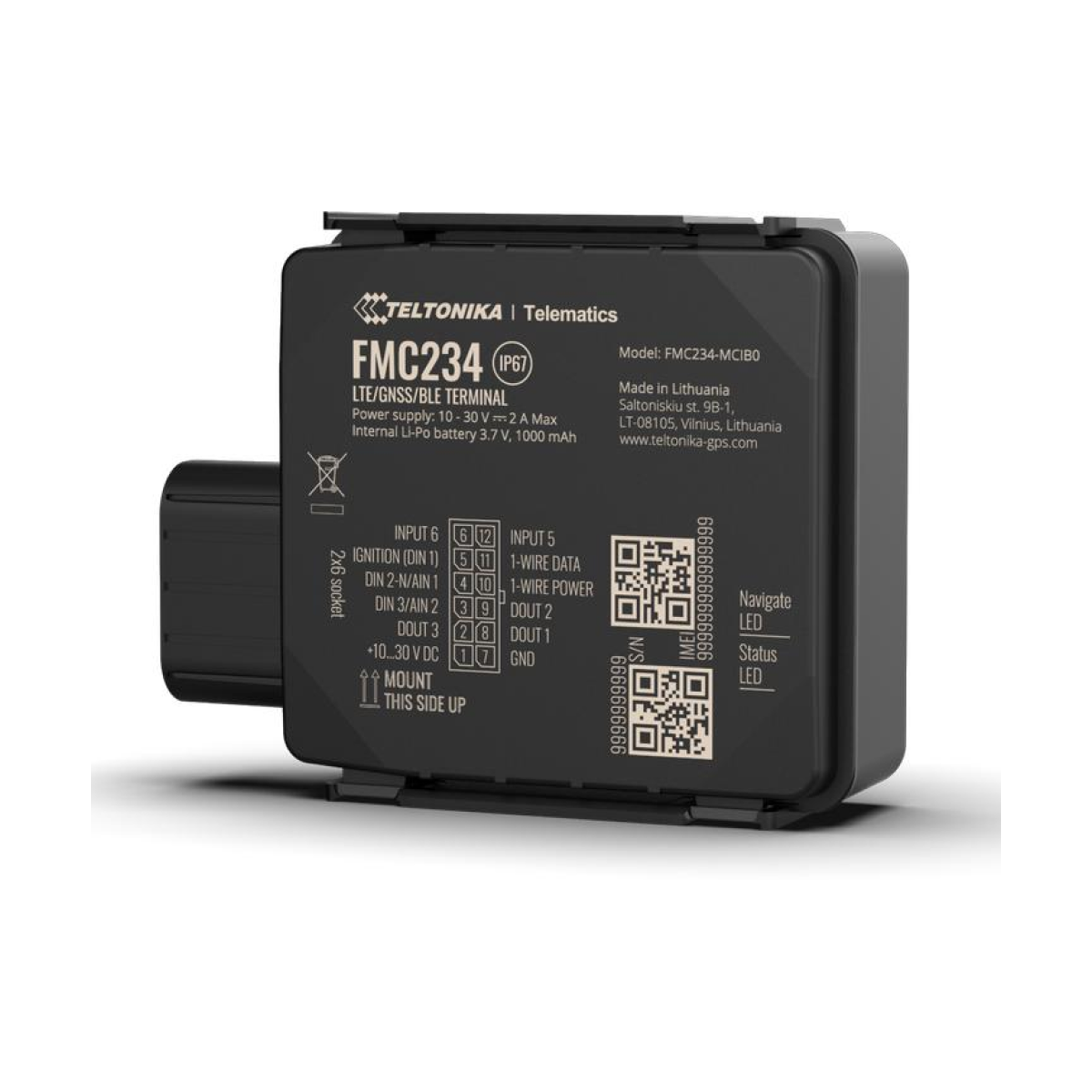

Teltonika FMC234 Water-Resistant 4G LTE Cat 1 Tracker
Connectivity & Networks
| Cellular Technology | 4G LTE Cat 1 (with 2G GSM fallback) |
|---|---|
| 4G FDD LTE Bands | B1 / B3 / B7 / B8 / B20 / B28 |
| 2G GSM Bands | B2 / B3 / B5 / B8 |
| GNSS Positioning | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Tracking Sensitivity | -165 dBM |
| Bluetooth Profile | Bluetooth 4.0 + LE (Low Energy) |
Power & Interface
| Input Voltage Range | 10 - 30 V DC with overvoltage protection |
|---|---|
| Internal Backup Battery | 1000 mAh Li-Po rechargeable 3.7V (3.7 Wh) |
| Digital Inputs | 3x Digital Inputs (including negative and impulse configuration) |
| Digital Outputs | 3x Digital Outputs |
| Analog Inputs | 2x Analog Inputs |
| Other Interfaces | 1-Wire, 1x CAN Adapter Input, 1x Micro-USB 2.0 |
Hardware & Smart Scenarios
| Integrated Sensors | 3-axis Accelerometer |
|---|---|
| Internal Memory | 128MB Flash (Up to 422,400 records) |
| SIM Slot Type | Micro-SIM or eSIM option |
| Status Indicators | 2x LED status lights |
| Advanced Scenarios | Green Driving, Over Speeding, Fuel Counter, Unplug/Towing/Crash Detection, Immobilizer, Auto Geofence |
Physical Properties
| Dimensions (LxWxH) | 70.5 x 67 x 25.6 mm |
|---|---|
| Net Weight | 91.8 g |
| Ingress Protection | IP67 Rating (Dust tight and water immersion up to 1 meter) |
| Operating Temperature | -20°C to +60°C (with battery) / -20°C to +85°C (without battery) |
Identifiers
| MPN | FMC234WCJ501 |
|---|---|
| GTIN / EAN / UPC | 4779027310718 |
