-15%

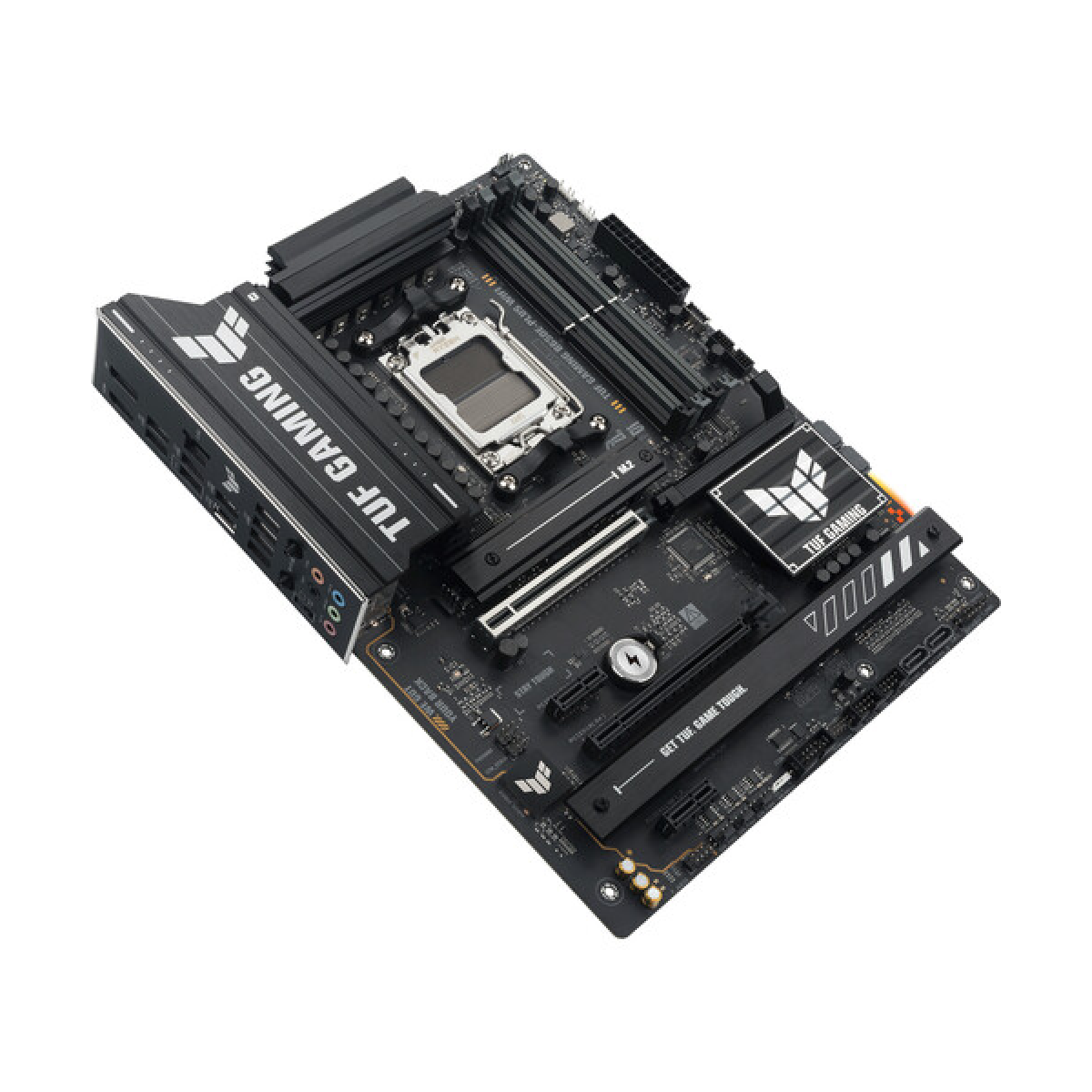

ASUS TUF GAMING B650E-PLUS WIFI AM5 ATX Motherboard

Name: ASUS TUF GAMING B650E-PLUS WIFI AM5 ATX Motherboard
Brand: ASUS
SKU: 90MB1M20-M0EAY0
Price: 195.83 EUR
Availability: OutOfStock

✔ ATX Form Factor
✔ AMD B650 Chipset
✔ AM5 Socket
✔ 4 x Dual-Channel DDR5 Slots
✔ 4 x SATA, 3 x M.2 PCIe
✔ PCIe 5.0 x16 | PCIe 4.0 x16 & x1
✔ USB 3.2 Gen 2 & 2×2 | USB 2.0
✔ Wi-Fi 6E | Bluetooth 5.3 | 2.5 GbE
✔ For Windows 10 & 11

Alkuperäinen hinta oli: 229,26€.Nykyinen hinta on: 195,83€.

Hinta sisältää 21% ALV:n

Varasto loppu

Kuvaus

ASUS TUF GAMING B650E-PLUS WIFI AM5 ATX Motherboard

Key Specs

Chipset	AMD B650
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Type Support	DDR5, 8000 MT/s Maximum Supported Speed
M.2 Slots	2280 / 22110
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
Wi-Fi	Wi-Fi 6E (802.11ax)
Form Factor	ATX

CPU

Chipset	AMD B650
CPU Socket	AM5

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 3x USB-A (USB 3.1/3.2 Gen 2) 6x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.1 1x DisplayPort 1.4
Audio	5x 1/8" / 3.5 mm
Ethernet / Controller	1x Realtek 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Type Support	DDR5, 8000 MT/s Maximum Supported Speed
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	4x SATA III
M.2 Slots	1x M.2 (M Key) 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 22110/2280/2260/2242 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4)
RAID Support	RAID 0, 1, 5, 10

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 2x PCIe 4.0 x1
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	Chassis Intrusion
LED Header	3x RGB
Diagnostics	Clear CMOS
Legacy	1x Serial

BIOS

ROM	256 Mb

Front Panel I/O

Front Panel I/O	AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek ALC1220P (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax): Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	Bluetooth 5.3
Module Support	1 E Key M.2

Software

OS Compatibility	Windows 10 to 11

Physical

Form Factor	ATX
Dimensions	12 x 9.6" / 30.5 x 24.4 cm

Packaging Info

Package Weight	4.24 lb
Box Dimensions (LxWxH)	14.2 x 10.9 x 2.7"

Identifiers

MPN	90MB1M20-M0EAY0
GTIN / EAN / UPC	4711387995488
