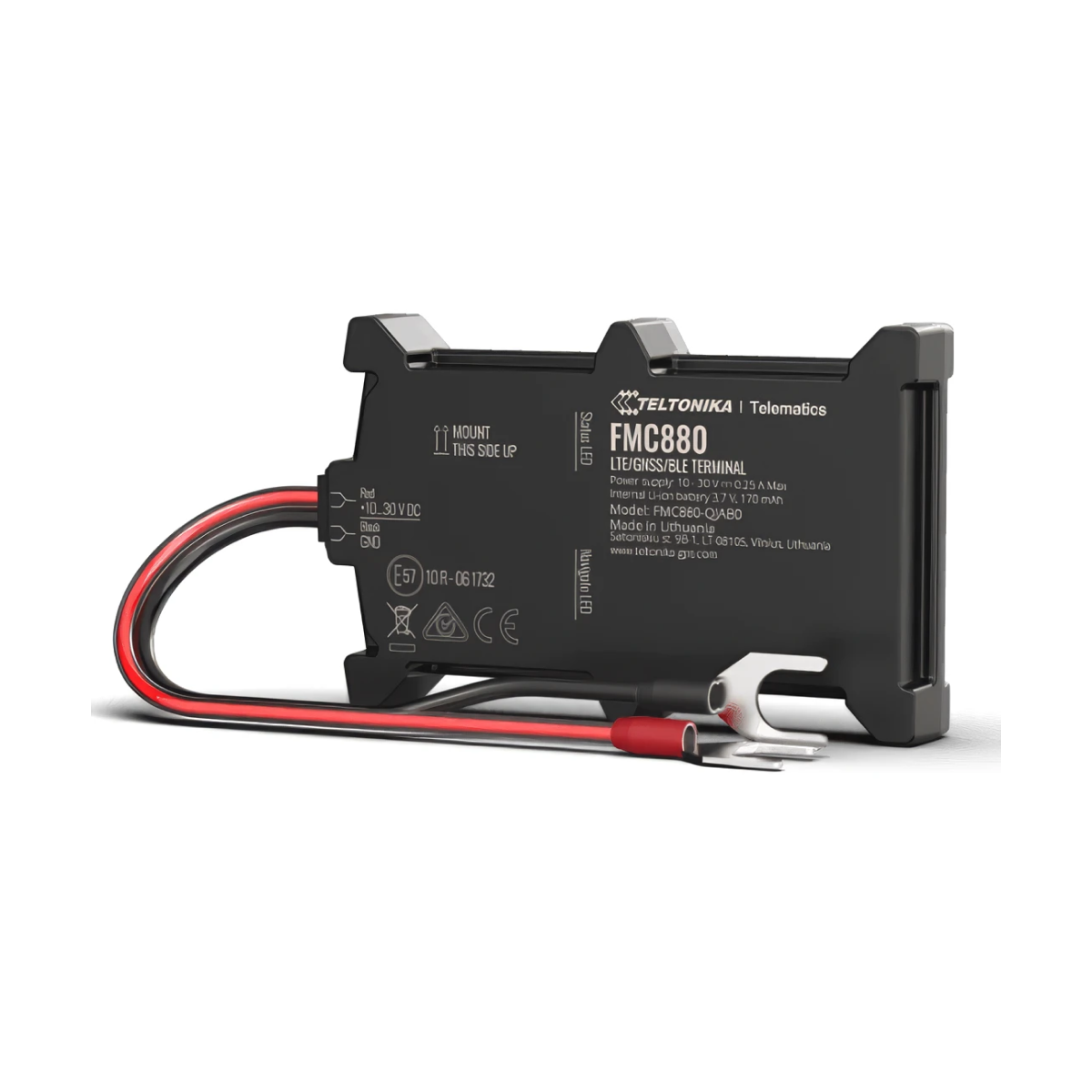

Teltonika FMC880 GPS Tracker
Connectivity & Networks
| Cellular Technology | 4G LTE Cat 1 (with 2G GSM / GPRS fallback) |
|---|---|
| 4G FDD LTE Bands | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| 2G GSM Bands | B2 / B3 / B5 / B8 |
| GNSS Positioning | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS (L1 & L5 Dual-band) |
| Tracking Sensitivity | -165 dBM |
| Bluetooth Profile | Bluetooth 4.0 + LE (Low Energy) |
Power & Battery
| Installation Type | Direct vehicle battery connection via integrated clamp connectors |
|---|---|
| Input Voltage Range | 10 - 30 V DC with overvoltage protection |
| Internal Backup Battery | 170 mAh Li-Ion 3.7V (0.63 Wh) |
| Internal Protection | 3 A, 125 V integrated fuse |
Hardware & Smart Scenarios
| Integrated Sensors | 3-axis Accelerometer |
|---|---|
| Internal Memory | 128MB Flash |
| SIM Slot Type | Micro-SIM |
| Configuration Port | Micro-USB 2.0 |
| Status Indicators | 2x LED status lights |
| Advanced Scenarios | Green Driving, Over Speeding, Jamming, Unplug, Towing, Crash Detection, Auto Geofence, Trip Generation |
Physical Properties
| Dimensions (LxWxH) | 92.5 x 57.6 x 14 mm |
|---|---|
| Net Weight | 63 g |
| Ingress Protection | IP65 Rating (Waterproof and dust-resistant for under-hood deployment) |
| Operating Temperature | -40°C to +85°C (without battery) / 0°C to +40°C (with battery) |
Identifiers
| MPN | FMC880LO9A01 |
|---|---|
| GTIN / EAN / UPC | 4779027310688 |
